Delta 2-24 LSCplus
Floor-mounted unit in compact design for demanding applications
Ice condenser capacity
: 24 kg
Ice condenser temperature : -85 °C
Ice condenser temperature : -85 °C

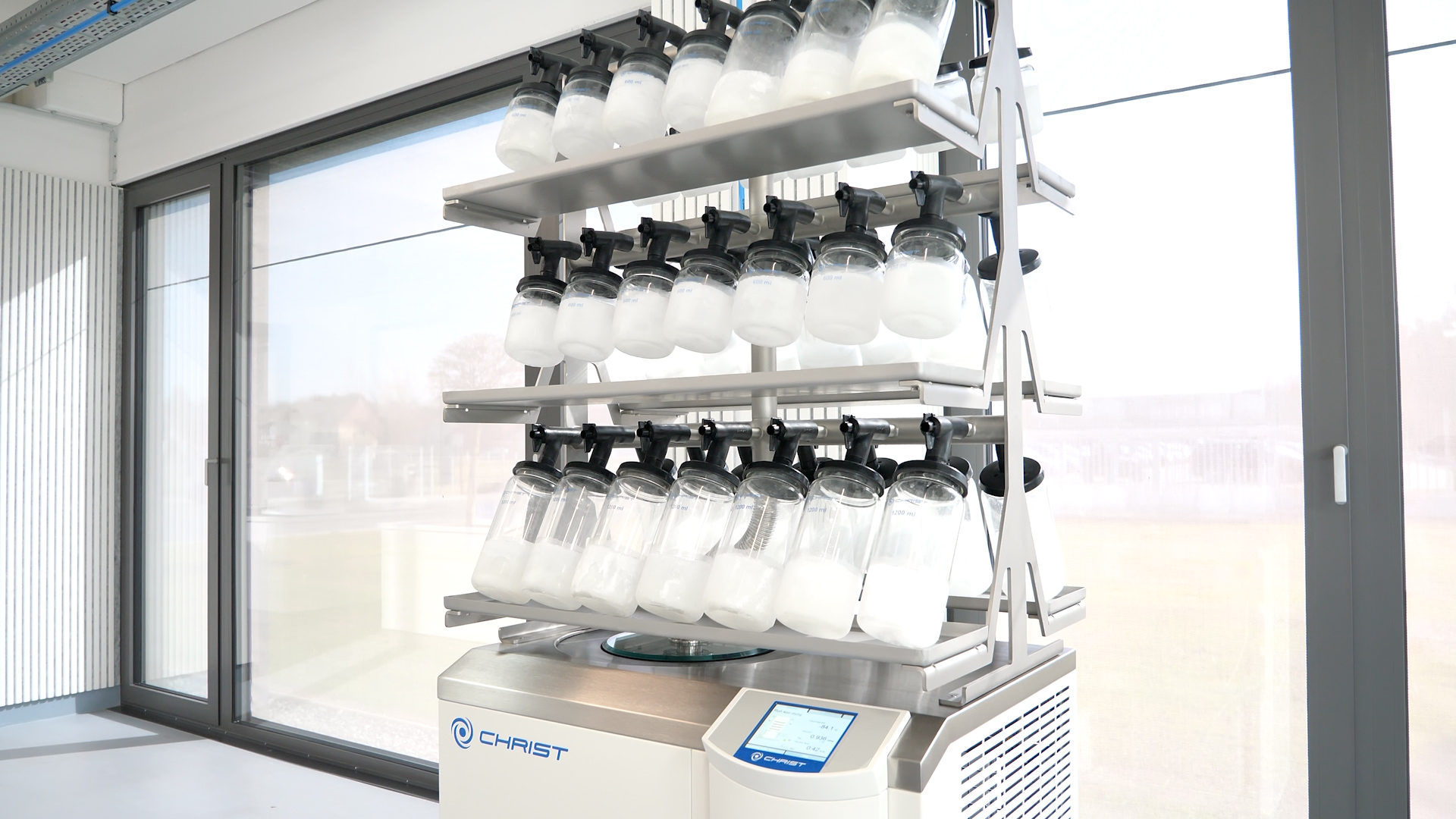

MultiPort System
Laboratory freeze dryer with large manifold and 42 connections
Ready-to-use system
The MultiPort System delivers a powerful and efficient solution for routine laboratories and high-throughput freeze drying applications. The large drying manifold, offering up to 42 ports, enables the simultaneous processing of large numbers of samples — maximizing efficiency, flexibility, and continuous workflow.
Integrated rubber valves allow individual vessels to be exchanged during operation without interrupting the process. This ensures a stable lyophilization process while keeping productivity at its highest level.
At the core of the system is the Delta 2-24 LSCbasic freeze dryer, engineered for reliable performance with an ice capacity of 24 kg, a condenser temperature of –85 °C, and a capacity of 9 kg per 24 hours. A stainless steel ice condenser with hot-gas defrost, the use of natural refrigerants, and an intuitive touchscreen control with a multilingual user interface provide outstanding efficiency, reliability, and user convenience.
Ice condenser capacity
24 kg
24 kg
Ice condenser temperature
–85 °C
–85 °C
Footprint
860 x 2127 x 610 mm
860 x 2127 x 610 mm
Product Specifications
| Ice condenser capacity | 24 kg |
|---|---|
| Ice condenser temperature | –85 °C |
| Dimensions of base model (W x H x D) | 860 x 2127 x 610 mm |
| Weight | 304 kg |
| Communication port | USB, LAN |
| GWP Index | ≤ 6 |
Special Features
- Manifold with 42 connections, drip trays and rubber valves
- Touch screen
- Defrost function
- Multiple language options
- Extensive messages (cause, action, effect)
- Integrated sublimation curve
Equipped with natural refrigerants*
As a leading manufacturer of freeze drying systems, we use natural refrigerants to provide sustainable and environmentally friendly freeze drying solutions. Our innovations help reduce environmental impact and build a greener future.
In 2009, we became one of the first manufacturers to convert our laboratory and pilot freeze dryers to nonflammable refrigerants. As a result, our freeze dryers have a particularly low Global Warming Potential (GWP) index.
* 50 Hz version, technichal changes reserved
