Gamma 2-16 LSCplus
Compact benchtop unit for demanding drying of larger sample quantities
Ice condenser capacity
: 16 kg
Ice condenser temperature : -85 °C
Ice condenser temperature : -85 °C
Laboratory freeze-dryer
Floor-mounted unit in compact design for demanding applications
Delta 2-24 LSCplus
Freezing and drying inside the ice condenser (single-chamber method) on ten heatable shelves, optionally with a fan
Condenser capacity: 24 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Single-chamber |
| Max. number of shelves | 10 |
| Shelf diameter | 200 mm |
| Total shelf area | 0,31 m² |
| Shelf temperature | –40 °C to +60 °C |
Delta 2-24 LSCplus
Freezing and drying inside the ice condenser (single-chamber method) on four heatable shelves with stoppering device, optionally with a fan
Condenser capacity: 24 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Single-chamber |
| Max. number of shelves | 4 |
| Shelf diameter | 250 mm |
| Total shelf area | 0,18 m² |
| Distance between shelves | 45 mm to 110 mm |
| Max. capacity for 2R Vials | 600 |
| Stoppering device | Yes |
| Shelf temperature | –40 °C to +60 °C |
Delta 2-24 LSCplus
Two drying chambers with a total of 24 connections for round-bottom flasks, wide-neck bottles or ampoule distributors
Condenser capacity: 24 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. connections | 24 |
Delta 2-24 LSCplus
Ten heatable shelves, additional connections for twelve round-bottom flasks, wide-neck bottles or ampoule distributors
Condenser capacity: 24 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. number of shelves | 10 |
| Shelf diameter | 200 mm |
| Total shelf area | 0,31 m² |
| Distance between shelves | 25 mm |
| Max. connections | 12 |
Delta 2-24 LSCplus
Four heatable shelves with stoppering device
Condenser capacity: 24 kg
Condenser temperature: –85 °C
| Controller | LScplus |
| Method | Double-chamber |
| Number of shelves | 4 |
| Shelf diameter | 250 mm |
| Total shelf area | 0,18 m² |
| Distance between shelves | 45 mm to 110 nn |
| Max. capacity for 2R Vials | 600 |
| Stoppering device | Yes |
Delta 2-24 LSCplus
Eight heatable shelves; optional lifting device for drying chamber available
Condenser capacity: 24 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. number of shelves | 8 |
| Shelf diameter | 375 mm |
| Total shelf area | 0,88 m² |
| Distance between shelves | 48 mm |
Basic device

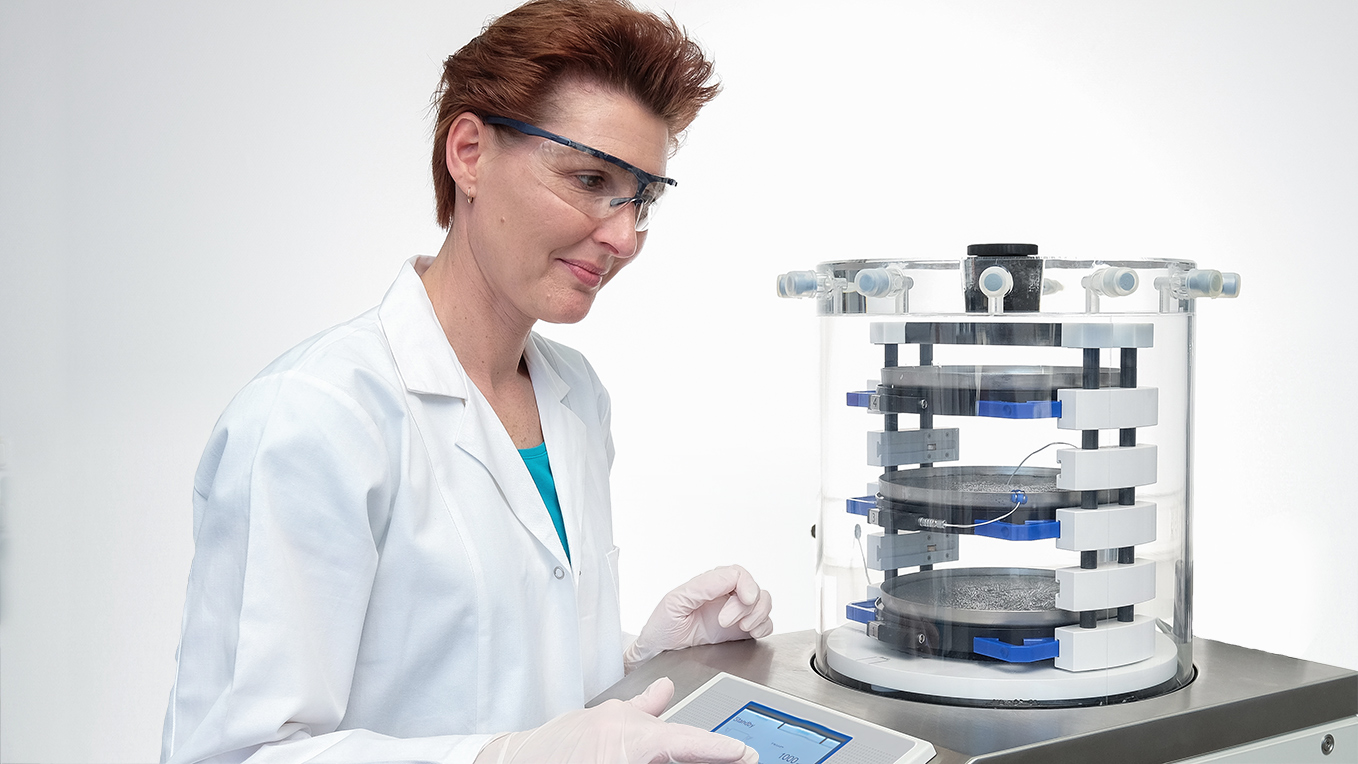

Compact, mobile unit for effective lyophilisation of specimens with innovative Wireless Shelf technology. The freeze dryer can be configured with tried and tested accessories to meet your specific needs. The simple and intuitive LSCplus controller supports manual and automatic process control for reproducible results.
Two different drying methods are available to handle virtually every task. –85 °C for specimens with low eutectic points.
Ice condenser capacity
24 kg
24 kg
Ice condenser temperature
-85 °C
-85 °C
Footprint
860 x 1050 x 650 mm
860 x 1050 x 650 mm
Product Specifications
| Ice condenser capacity | 24 kg |
|---|---|
| Ice condenser temperature | -85 °C |
| Dimensions of base model (W x H x D) | 860 x 1050 x 650 mm |
| Weight | 250 kg |
| Communication port | Ethernet |
| GWP Index | ≤ 6 |
Special Features
- Vacuum control
- Pressure rise test
- Defrost function
- Product temperature
- Program selector
Equipped with natural refrigerants*
As a leading manufacturer of freeze drying systems, we use natural refrigerants to provide sustainable and environmentally friendly freeze drying solutions. Our innovations help reduce environmental impact and build a greener future.
In 2009, we became one of the first manufacturers to convert our laboratory and pilot freeze dryers to nonflammable refrigerants. As a result, our freeze dryers have a particularly low Global Warming Potential (GWP) index.
* 50 Hz version, technichal changes reserved
