Beta 1-8 LSCplus
Configuration with field-proven accessories for your individual needs
Ice condenser capacity
: 8 kg
Ice condenser temperature : -55 °C
Ice condenser temperature : -55 °C
Laboratory freeze-dryer
Compact benchtop unit for efficient drying of larger sample quantities
Beta 1-8 LSCbasic
Drying manifold for eight round-bottom flasks, wide-mouth filter bottles or ampoule distributors
Condenser capacity: 8 kg
Condenser temperature: –55 °C
| Controller | LSCbasic |
| Method | Double-chamber |
| Max. connections | 8 |
Beta 1-8 LSCbasic
Five unheated shelves
Condenser capacity: 8 kg
Condenser temperature: –55 °C
| Controller | LSCbasic |
| Method | Double-chamber |
| Max. number of shelves | 5 |
| Shelf diameter | 250 mm |
| Total shelf area | 0,25 m² |
| Distance between shelves | 79 mm |
| Diameter of acrylic chamber | 300 mm |
Beta 1-8 LSCbasic
Two drying chambers with a total of 24 connections for round-bottom flasks, wide-neck bottles or ampoule distributors; optionally three shelves
Condenser capacity: 8 kg
Condenser temperature: –55 °C
| Controller | LSCbasic |
| Method | Double-chamber |
| Max. number of acrylic chambers | 2 |
| Diameter of acrylic chamber | 300 mm |
| Max. connections | 24 |
Beta 1-8 LSCbasic
Five large unheated shelves (possible with special adapter plate)
Condenser capacity: 8 kg
Condenser temperature: –55 °C
| Controller | LSCbasic |
| Method | Double-chamber |
| Max. number of shelves | 5 |
| Shelf diameter | 360 mm |
| Total shelf area | 0,5 m² |
| Distance between shelves | 70 mm |
| Diameter of acrylic chamber | 457 mm |
Beta 1-8 LSCbasic

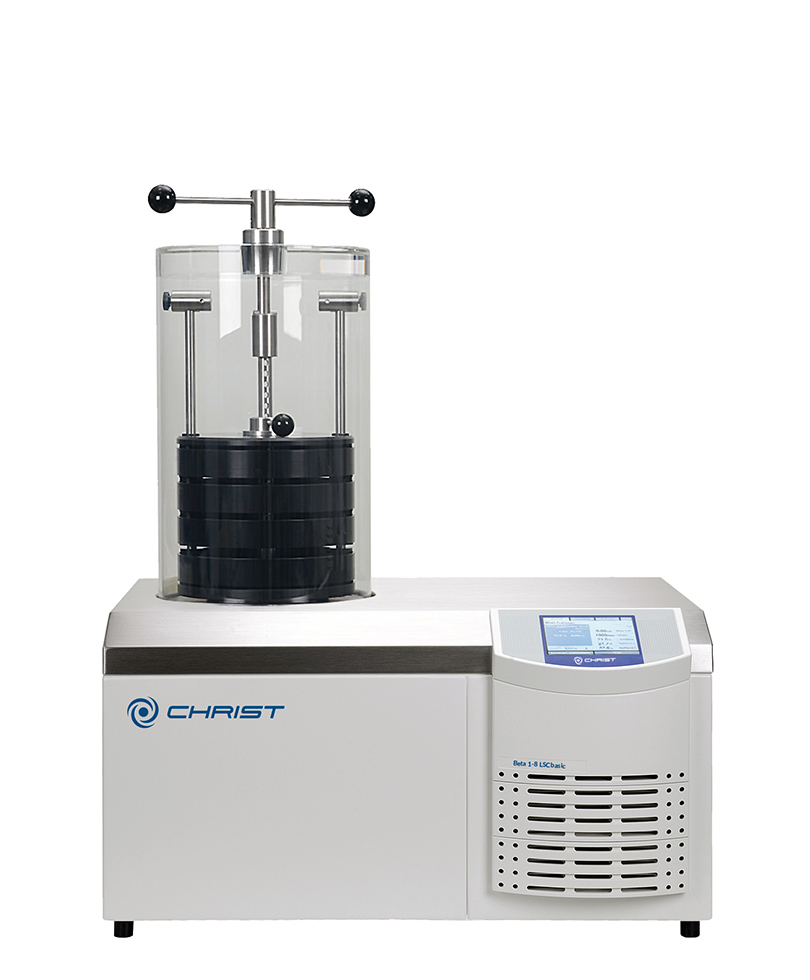

Stoppering device with four unheated shelves
Condenser capacity: 8 kg
Condenser temperature: –55 °C
| Controller | LSCbasic |
| Method | Double-chamber |
| Max. number of shelves | 4 |
| Shelf diameter | 250 mm |
| Total shelf area | 0,18 m² |
| Distance between shelves | 45 mm to 110 mm |
| Max. capacity for 2R Vials | 600 |
| Stoppering device | Yes |
Basic device
Compact tabletop unit for the effective drying of relatively large specimen quantities. The LSCbasic user interface makes the work very easy. You can choose from a wide range of configurations to adapt the freeze dryer optimally to your specific needs. Condenser temperature of –55 °C for drying aqueous products.
Ice condenser capacity
8 kg
8 kg
Ice condenser temperature
-55 °C
-55 °C
Footprint
780 x 415 x 540 mm
780 x 415 x 540 mm
Product Specifications
| Ice condenser capacity | 8 kg |
|---|---|
| Ice condenser temperature | -55 °C |
| Dimensions of base model (W x H x D) | 780 x 415 x 540 mm |
| Weight | 63 kg |
| Communication port | Ethernet |
| GWP Index | 2 |
Special Features
- Conversion of product temperature and vacuum according to the vapour pressure curve above ice
- Touch screen
Equipped with natural refrigerants*
As a leading manufacturer of freeze drying systems, we use natural refrigerants to provide sustainable and environmentally friendly freeze drying solutions. Our innovations help reduce environmental impact and build a greener future.
In 2009, we became one of the first manufacturers to convert our laboratory and pilot freeze dryers to nonflammable refrigerants. As a result, our freeze dryers have a particularly low Global Warming Potential (GWP) index.
* 50 Hz version, technichal changes reserved
